SKU: QFP-PM31HG-20DC-FSZ
Product Highlights
Compliant to 100G Lambda MSA 100G LR1-20
Full-duplex transceiver module
4x25.78125Gbps NRZ electrical interface(CAUI-4)
106.25Gbps PAM4 based on a cooled EML TOSA transmitter
106.25Gbps PAM4 PIN Receiver
4W maximum power dissipation
Maximum link length of 20km on G.652 SMF with KP-FEC
Hot-pluggable QSFP28 form factor

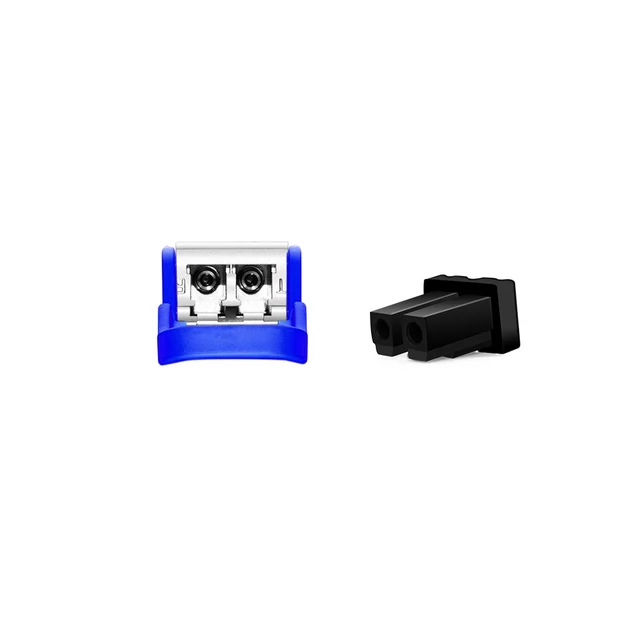

Duplex LC receptacles

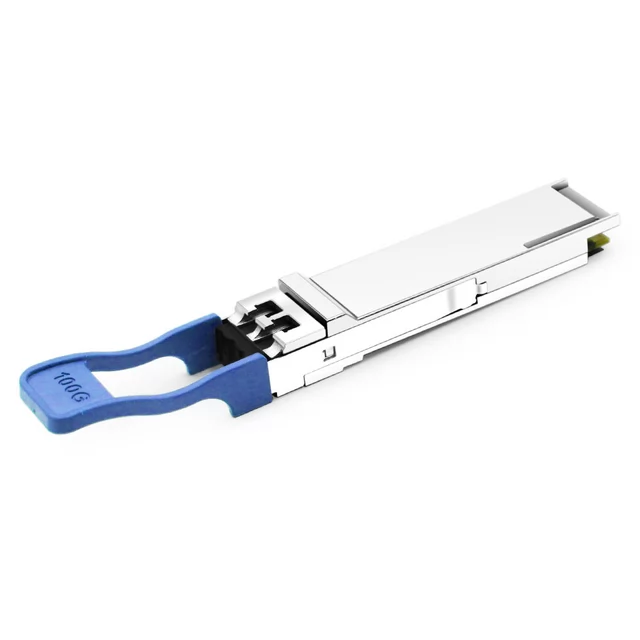

FIBERTOP 100G PAM4 LR1 QSFP28 Transceiver SMF 1310nm 20km LC DOM
The FIBERTOP 100G LR1-20km QSFP28 optical transceiver, 100G QSFP28 LR1-20(QFP-PM31HG-20DC) is designed for using in 100-Gigabit Ethernet links up to 20km over Single-Mode Fiber (SMF). It is compliant with the QSFP28 MSA ,
100G Lambda 100G LR1-20 and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal,
and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface uses a 38-contact edge type connector. The optical interface uses a Duplex LC connector.
The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 20km links.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-PM31HG-20DC |
| Transceiver Type | LR1 | Reach | 20km |
| Wavelength |
PAM4 |
Form Type | QSFP28 |
| Speed Description | 100Gb/s | Media | SMF |
| Connector | LC | Extinction Ratio | >3.5 dBm |
| TX Power | -0.2~6.6 dBm | Receiver Sensitivity | <-7.6 dBm |
| Applications |
100G Lambda 100G LR1-20 |
Environment |
Operating:0 to70C Storage: -40°C to 85°C |
