50G SFP56 - Optical Transceivers Modules

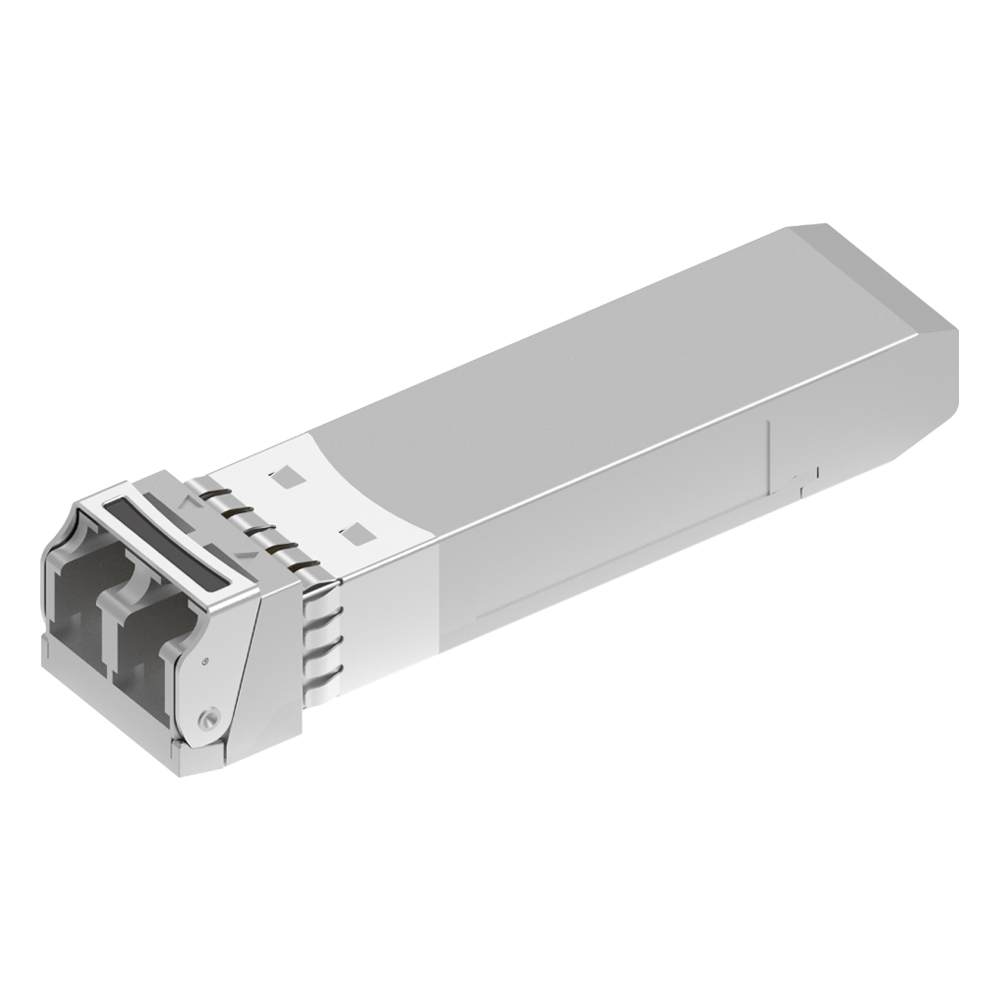

FIBERTOP 50G SFP56 SR VCSEL 850nm 100m Optical Transceiver

SKU: SFP-PM8550-S1DC Product Highlights Transmission data rate up to 53Gbps per channel 53Gbps PAM4 transmitter and PAM4 receiver 850nm VCSEL array, PIN photo detector array Internal DSP circuits on both receiver and transmitter channels Hot Pluggable SFP form factor and Compliant with SFF-8431,SFF-8472, SFP56 MSA IEEE 802.3cd Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC Dual LC connector receptacle

Hot Tags : 50G SFP56 SFP56 speed SFP56 transceiver SFP56 ports SFP56 msa 50G SFP56 SR
Read More >>

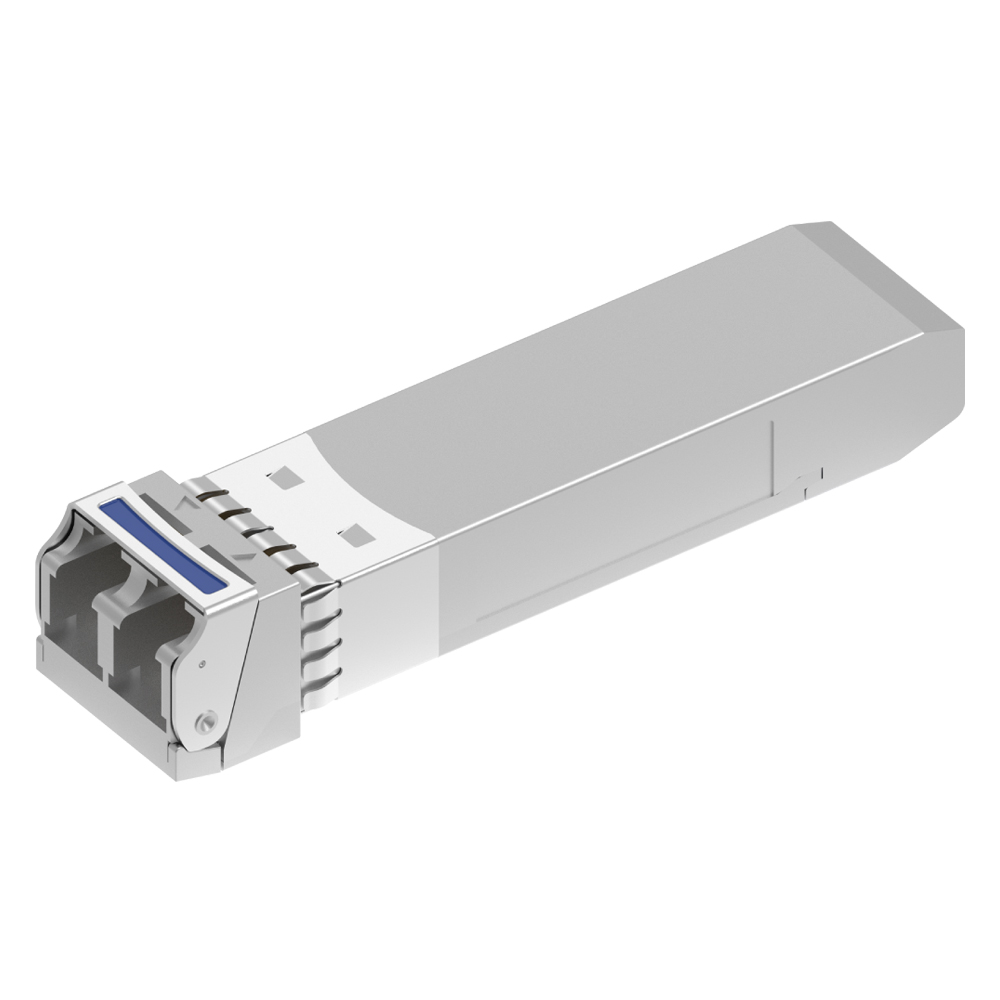

FIBERTOP 50G LR SFP56 SMF 1311nm 10km LC DOM Transceiver Module

SKU: SFP-PS3150-10DC Product Highlights Hot-pluggable SFP56 form factor Maximum link length of 10km，Full-duplex transceiver module Up to 53.125Gbps (26.5625GBd PAM4) 53.125Gbps PAM4 based on a cooled EML TOSA transmitter 53.125Gbps PAM4 PIN Receiver Duplex LC receptacle，Single 3.3V power supply SFP56 MSA IEEE 802.3cd，Power dissipation < 3W RoHS compliant (lead free)，Operating case temperature range: 0°C to 70°C

Hot Tags : 50G SFP56 LR 53g sfp56 10km sfp56 module 50g-lr-sfp56 sfp56 1311 10km SFP Transceiver
Read More >>

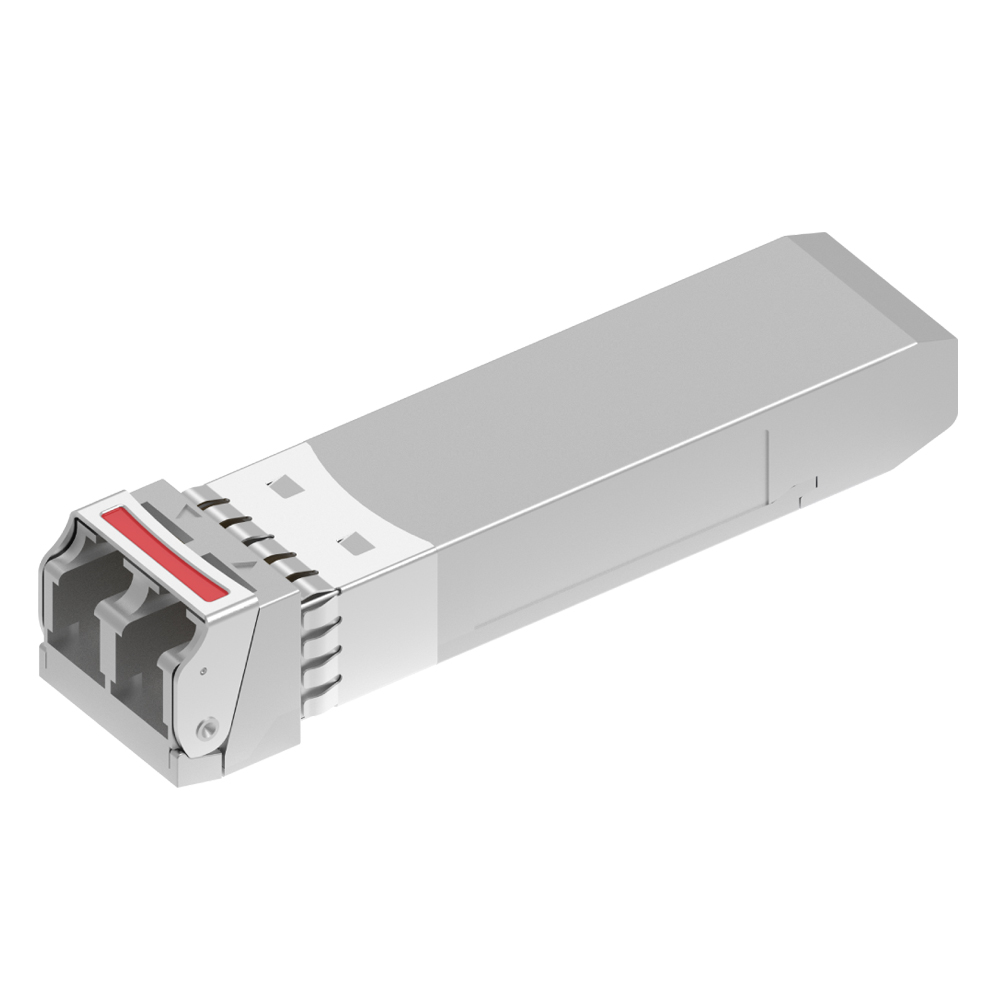

FIBERTOP 50G SFP56 ER EML 1310nm 40km Optical Transceiver

SKU: SFP-PS3150-40DC Product Highlights Hot-pluggable SFP28 form factor Maximum link length of 40km Full-duplex transceiver module Up to 53.125Gbps (26.5625GBd PAM4 53.125Gbps PAM4 based on a cooled EML TOSA transmitter 53.125Gbps PAM4 APD Receiver Duplex LC receptacle

Hot Tags : 50G SFP56 SFP56 transceiver 50g er 50G SFP56 ER 50g transceiver SFP56-50G-ER
Read More >>
