800G OSFP SR8 850nm 100m MMF MPO Optical Transceiver

SKU: OFP-MM85EG-SR8C Product Highlights 8x100G PAM4 retimed 800GAUI-8 electrical interface Dual MPO-12 APC connector and MPO16 APC connector are provided 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2

Hot Tags : 800G OSFP SR8 800G OSFP 800G SR8 800G OSFP SR8 100m 800G OSFP SR8 Optical Transceiver 800G OSFP SR8 Transceiver
Read More >>
FIBERTOP OSFP 400G SR4 Multimode 850nm 100m Optical Transceiver

SKU: OFP-MM85QG-SR4C Product Highlights Support 100GBASE per lane in multimode fiber Hot-pluggable OSFP Type form factor Data rate up to 425Gbps (4x 106.25Gbps) Reach up to 100m on MMF(OM4) 850nm VCSEL laser and PIN receiver High speed I/O electrical interface (400GAUI-4) Single MPO-12-APC Receptacle Type

Hot Tags : OSFP 400G SR4 400G OSFP SR4 400G SR4 OSFP SR4 400G OSFP OSFP 400G SR4 100m
Read More >>
FIBERTOP 400G SR8 QSFP-DD MMF 850nm 100M MPO DOM Transceiver Module

SKU: QDD-MM85QG-SR8C-FSZ Product Highlights 8 independent parallel optical channels Each channel data rate up to 26.56GBaud with CDR Hot Pluggable Up to 100m link on OM4 Multi-mode 850nm VCSEL/PD Array Technology CML Compatible electrical I/O,QSFP-DD MSA Compliance Optical connectivity via industry standard MPO/MTPterminated fiber ribbon CMIS 4.0 Compliance, Monitors for VCSEL bias, transmitted, received power , module temperature, and module supply RoHS II Compliance, Case Operating Temperature:Commercial: 0 to 70ºC MPO-16 APC Optical Receptacle Type

Hot Tags : 400G QSFP-DD 400g qsfp-dd sr8 400g qsfp-dd 850nm 100m telecom network optical module qsfp-ddtransceiver
Read More >>
400G QSFP-DD Optical Transceiver Module FR8 2km

SKU: QDD-LW31QG-FR8C Product Highlights 8 channels full-duplex transceiver modules Transmission data rate up to 53Gbps per channel 8x53Gbps PAM4 transmitter and PAM4 receiver 8 channels LAN-WDM 8 wavelengths EML 8 channels PIN photo detector Internal CDR circuits on both receiver and transmitter channels Power consumption <12.5W Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0 Maximum link length of 2km G.652 SMF with KP-FEC Duplex LC receptacles Built-in digital diagnostic functions 3.3V power supply voltage RoHS compliant(lead free) Operating case temperature:Standard: 0 to +70°C

Hot Tags : 400G 400G QSFP 400G QSFP DD 400G 2KM 400G QSFP-DD 2KM 400G FR8
Read More >>
FIBERTOP QSFP-DD 400G ER8 40Km Optical Transceiver Module

SKU: QFP-LW31QG-ER8C Product Highlights QSFP-DD MSA compliant Compliant to IEEE 802.3bs 400GBASE-ER8 Digital diagnostic monitoring support Hot pluggable 76 pin electrical interface 8 LAN-WDM lanes MUX/DEMUX design 53.125 Gbps PAM4 Channel Electrical Serial Interface (400GAUI-8) Maximum power consumption 15.4 W LC duplex connector Supports 425 Gbps bit rate Up to 40 km transmission on single mode fiber Single 3.3 V power supply RoHS 2 compliant Operating case temperature:Standard: 0 to +70°C

Hot Tags : 400G 400G QSFP 400G QSFP DD 400G 40KM 400G QSFP-DD 40KM 400G ER8
Read More >>
400GBASE- ZR OSFP-DCO DWDM 80km Optical Transceiver Module

SKU: QFP-CTQG-ZRC Product Highlights Support Flex-grid channel spacing DWDM in C-band Support Client-side Interfaces: 400GAUI-8 Support Line-side DP-16QAM with CFEC Standard QSFP-DD type 2 form factor 76pin QSFP-DD MSA compliant connector Compliant to CMIS 5.0 Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1

Hot Tags : qsfp-dd 400g qsfp-dd 400g 80km qsfp-dd 400g zr 400g zr+ qsfp-dd-dco QFP-CTQG-ZRC osfp-400g-zr
Read More >>
FIBERTOP 400G Coherent OSFP-DCO ZR+ 80KM C-band Tunable Optical Transceiver Module

SKU: QFP-CTQG-ZRC Product Highlights Support Flex-grid channel spacing DWDM in C-band Support Client-side Interfaces: 400GAUI-8 Support Line-side DP-16QAM with CFEC Standard QSFP-DD type 2 form factor 76pin QSFP-DD MSA compliant connector Compliant to CMIS 5.0 Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1

Hot Tags : qsfp-dd 400g qsfp-dd 400g 80km qsfp-dd 400g zr 400g zr+ qsfp-dd-dco 400g zr+ coherent osfp-400g-zr
Read More >>
FIBERTOP 400G ZR+ QSFP-DD Coherent DWDM DCO Optical Module Transceiver 120km

SKU: QFP-DCQG-ZRC Product Highlights Operating rate up to 478.75 Gbps PM-QPSK (200G) and PM-16QAM (200G / 400G) modulation formats 400GE, 200GE and OTU4 / OTUCn services Hot-pluggable QSFP-DD form factor 8 × CEI-56G-VSR electrical interfaces Lock registers Maximum power consumption: 24 W

Hot Tags : 400g coherent transceiver 400g dco 400G QSFP-DD DCO 400g coherent 400g zr+ coherent dwdm coherent
Read More >>
FIBERTOP 200G QSFP56 SR4 MMF 850nm 100m MPO Optical Transceiver Module

SKU: QFP-MM85DG-S1DC Product Highlights Hot Pluggable QSFP56 Transceiver Supports 212,5Gbps aggregate bit rate Up to 53.125Gbps data rate per channel SFF-8665 compliant QSFP56 port;SFF-8636 compliant I2C management Compliant with IEEE802.3cd 200GBASE-SR4 MPO-12 connector receptacle with UPC end-face Maximum link length of 100m on OM4 MMF

Hot Tags : QSFP56 SR4 200g qsfp56 sr4 200G Transceiver QFP-MM85DG-S1DC 200G SR4 200G Optical Transceivers
Read More >>
FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module

SKU: SFP-MM85TG-S3DC Product Highlights Supports up to 10.7Gbps bit rates Hot-pluggable SFP+ footprint 850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring

Hot Tags : 10g sfp+ module SFP optical module SFP-10G-SR SFP-MM85TG-S3DC 10G SR SFP+ 850nm 300m e10gsfpsr
Read More >>
FIBERTOP 10G LRM SFP+ MMF 1310nm 220m LC DOM Transceiver Module

SKU: SFP-MM31TG-S2DC Product Highlights Supports up to 10.7Gbps bit rates Hot-pluggable SFP+ footprint 1310nm FP laser and PIN photodiode, Up to 220m for MMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring

Hot Tags : 10gbase lrm sfp+ sr lr SFP-10G-SR 10GBase-SR SFP+ LC Transceiver SFP-MM31TG-S2DC 10G SFP+ SR 1310nm 220m
Read More >>
FIBERTOP 10G LR SFP+ SMF 1310nm 10km LC DOM Transceiver Module

SKU: SFP-SM31TG-10DC Product Highlights Supports up to 10.7Gbps bit rates Hot-pluggable SFP+ footprint 1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring

Hot Tags : sfp 10g 10km 10G LR SFP+ 1310nm 10km 10gbase_lr_sfp SFP-SM31TG-10DC SFP 10G LR 10km SFP optical transceiver
Read More >>
FIBERTOP 10G ER SFP+ SMF 1550nm 40km LC DOM Transceiver Module

SKU: SFP-SM55TG-40DC Product Highlights Supports up to 10.7Gbps bit rates Hot-pluggable SFP+ footprint 1550nm Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring

Hot Tags : sfp 10g 40km sfp+ sr lr er zr SFP-SM55TG-40DC 10G ER SFP+ 1550nm 40km sfp 10gbase 10gbase
Read More >>

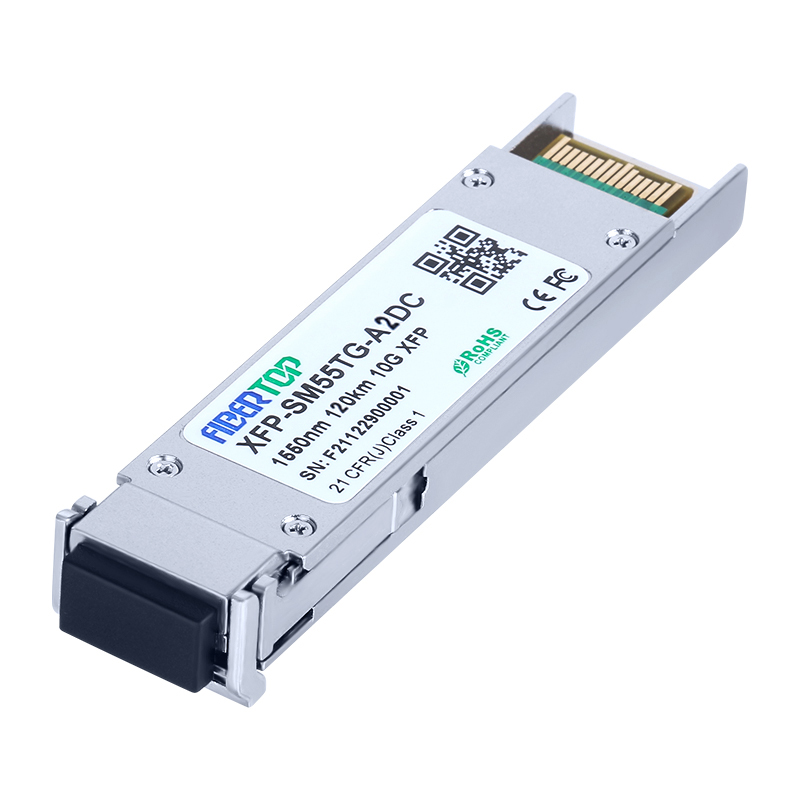

10Gbase-ZR XFP 1550nm 120km Transceiver Module

SKU: XFP-SM55TG-A2DC Product Highlights Supports 9.953Gb/s to 11.1Gb/s bit rates Hot-pluggable XFP footprint, Built-in digital diagnos Maximum link length of 120km with SMF 1550nm Cooled EML laser and APD photodiode XFP MSA package with duplex LC connector No reference clock required Power dissipation <3.5W Single +3.3V power supply Compatible with RoHS Temperature range：0 to +70°C

Hot Tags : 10Gbase-ZR XFP 1550nm 120km Transceiver Module 10Gbase-ZR XFP 10G XFP ZR XFP 10G ZR 120km 10G XFP 120km XFP-SM55TG-A2DC
Read More >>
10GBASE-SR X2-10G-SR MMF 850nm 300m Transceiver Module

SKU: X2-MM85TG-S3DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps Transmission Distance up to 300m (MMF) Vertical Cavity Surface Emitting Laser at 850nm SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface

Hot Tags : X2-10G-SR 10G SR X2 10GBASE SR X2 850nm 300m 10GBASE-SR X2 X2 10GBASE SR X2-MM85TG-S3DC
Read More >>
10GBASE-SR X2 10G 1310nm 220m Transceiver

SKU: X2-MM31TG-S2DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps Transmission Distance up to 220m(MMF) SC Receptacle 1310nm DFB Laser, SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface Diagnostic Optics Monitoring

Hot Tags : X2-10G-SR 10GBASE X2 SR 220m X2 SR 10GBASE 220m X2-10GBASE-LRM X2 10GBASE-SR X2 10G 1310nm 220m Transceiver X2-MM31TG-S2DC
