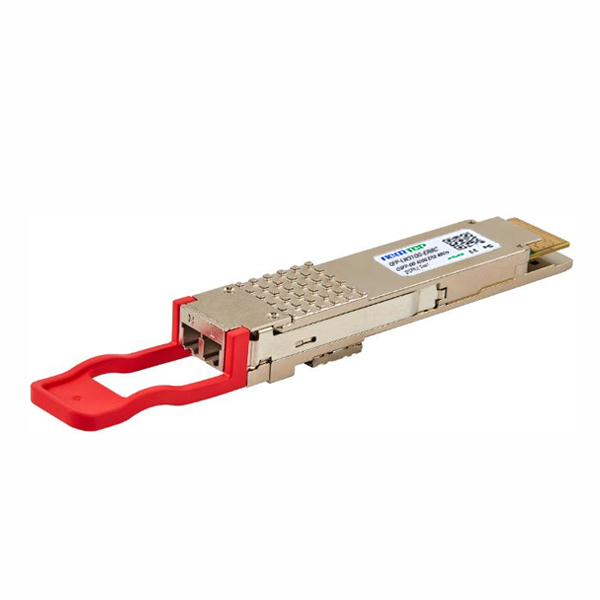

Juniper Networks® Compatible QDD-400G-LR8-40 400G QSFP-DD ER8 40Km Optical Transceiver Module
Juniper Networks® Compatible QDD-400G-LR8-40  400G  QSFP-DD  ER8 40Km Optical Transceiver Module

Juniper Networks® Compatible QDD-400G-LR8-40 400G QSFP-DD ER8 40Km Optical Transceiver Module



SKU: QFP-LW31QG-ER8C-FSZ



Product Highlights



QSFP-DD MSA compliant



Compliant to IEEE 802.3bs 400GBASE-ER8



Digital diagnostic monitoring support



Hot pluggable 76 pin electrical interface



8 LAN-WDM lanes MUX/DEMUX design



53.125 Gbps PAM4 Channel Electrical Serial Interface (400GAUI-8)



Maximum power consumption 15.4 W



LC duplex connector



Supports 425 Gbps bit rate



Up to 40 km transmission on single mode fiber



Single 3.3 V power supply



RoHS 2 compliant



Operating case temperature:

Standard:  0 to +70°C


New Products

This Juniper Networks® QDD-400G-LR8-40 compatible QSFP-DD transceiver provides 400GBase-ER8 throughput up to 40km over single-mode fiber (SMF) PAM4  via an LC connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Juniper Networks®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.



Technical Specification

Compatible OEM Juniper® Compatible With OEM Part Number(s) QFP-LW31QG-ER8C
Transceiver Type ER8 Reach 40km
Wavelength Multiply wave nm Form Type QSFP-DD
Speed Description 400-Gigabit Media SMF
Connector LC  Extinction Ratio >6dB
Average laneTX Power -0.6~+5.6dBm Receiver Sensitivity RS
 Applications

400GBASE-ER8 Ethernet

Telecom networking

Data Center Interconnect

Environment

Operating: 0 to70°C

Storage: -40°C to 85°C





 Compatibility

Juniper network switches • Juniper network routers
• Juniper firewalls • Juniper security gateway
• Juniper fiber media converter • Juniper network adapters
• Juniper network interface card (NICs) • Juniper NAS




Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with many years' experience in telecom industry.
  • Our manufacturers are first-class manufacturers in the industry.
  • Many of them have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provide after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


Replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information (such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with →FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note:The warranty period of the repair or replacement product is based on the longer time,either the remaining warranty period of the original product or ninety days after repair.

  • Request a repair

When your FIBERTOP products need repairing(RMA-Return Material Authorization ) , please contact your sales consultant to provide timely service to you.



  • Free maintenance items

Guarantee repairing in two years : 1.Not man made damage; 2. Product quality issues caused by design defects or material problems.



  • The following conditions will not be repaired

• Maintenance center judge as a non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all the products are subject to strict quality control from raw materials procurement to production process. According to the problems raised by customers. if it is confirmed that the defective product are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free ;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification ;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products ; FIBERTOP is not obliged to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related equipment,etc.



FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net weight
0.5kg Gross Weight(with package) 0.6kg
