SKU: QFP-DW55FG-A0DC
Product Highlights
4 lanes MUX/DEMUX design
100GHz ITU Grid, C Band DWDM EML transmitter, APD photo-detector
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-EZR4
Up to 100 km transmission
Compliant with QDR/DDR Infiniband data rates

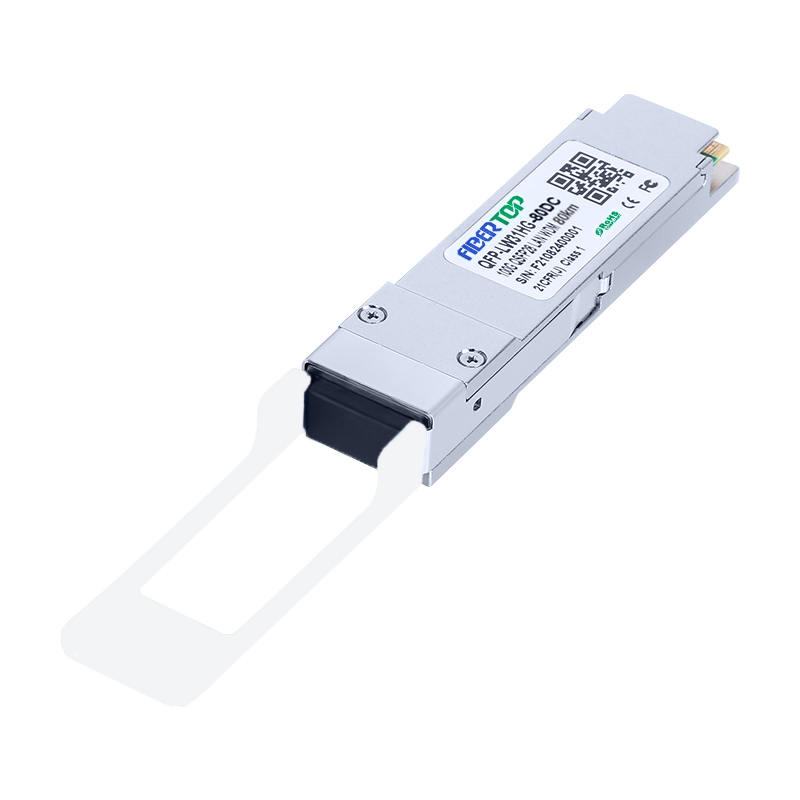

FIBERTOP 40G QSFP+ EZR4 DWDM 100km LC Optical Transceiver
The QFP-DW55FG-A0DC is a transceiver module designed for 100km optical communication applications. The design is compliant to 40GBASE-EZR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical data to 4 DWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 DWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 DWDM channels as members of the DWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system,single-mode fiber (SMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The TQP10 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-DW55FG-A0DC |
| Transceiver Type | EZR4 | Reach | 100km |
| Wavelength | DWDM | Form Type | QSFP+ |
| Speed Description | 40-Gigabit | Media | SMF |
| Connector | LC | Extinction Ratio | 6.5 dBm |
| TX Power | 1~ 5 dBm | Receiver Sensitivity | <-26 dBm |
| Applications |
Data centers Switches and Routers 40G BASE-EZR4 Metro networks Switches and Routers |
Environment |
Operating:0 to70℃ Storage: -40°C to 85°C |
Quality Certification
FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:
|
Return within 30 days |
replacement up to 1 year |
Up to 5 years warranty |
Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOPSFP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOPSFP repair centre.
Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.
When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.
Guarantee repairing in two years:1. Not man made damage； 2. Product quality issues caused by design defects or material problems
• Maintenance center judge as non FIBERTOP products;
• The appearance of man-made damage;
• End face damage caused by use;
• Inapplicable items listed in the warranty statement.
• FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;
• The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;
• The warranty also does not apply to second-hand or unauthorized resale of products;
• The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.
• The warranty does not cover problems caused by third-party software or connected related devices, etc.
| FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services. |
 |
|||||||
| Net Weight |
0.036kg | Gross Weight (with package） | 0.32kg |
||||
 |
