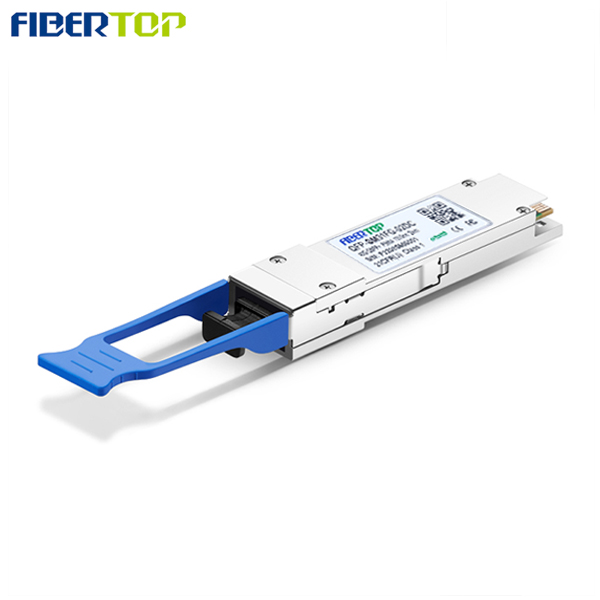

FIBERTOP 40G QSFP+ SMF 1310nm PSM4 2km MPO DOM Transceiver Module



SKU: QFP-SM31FG-02DC-FSZ



Product Highlights



Four-channel full-duplex transceiver modules



Transmission data rate up to 11.2Gbit/s per channel



Up to 2km transmission of single mode fiber



Low power consumption <2.5W,meet class 3



3.3V power supply voltage



Hot Pluggable QSFP+ form factor



Single MPO connector receptacle



RoHS 6 compliant


New Products



FIBERTOP 40G  QSFP+ Transceiver  SMF 1310nm PSM4 2km MPO DOM



The QFP-SM31FG-02DC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications.

The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.2Gbps operation for an aggregate data rate of 40Gbps 2km using single mode fiber.

These modules are designed to operate over single  mode fiber systems using 1310nm DFB laser array.

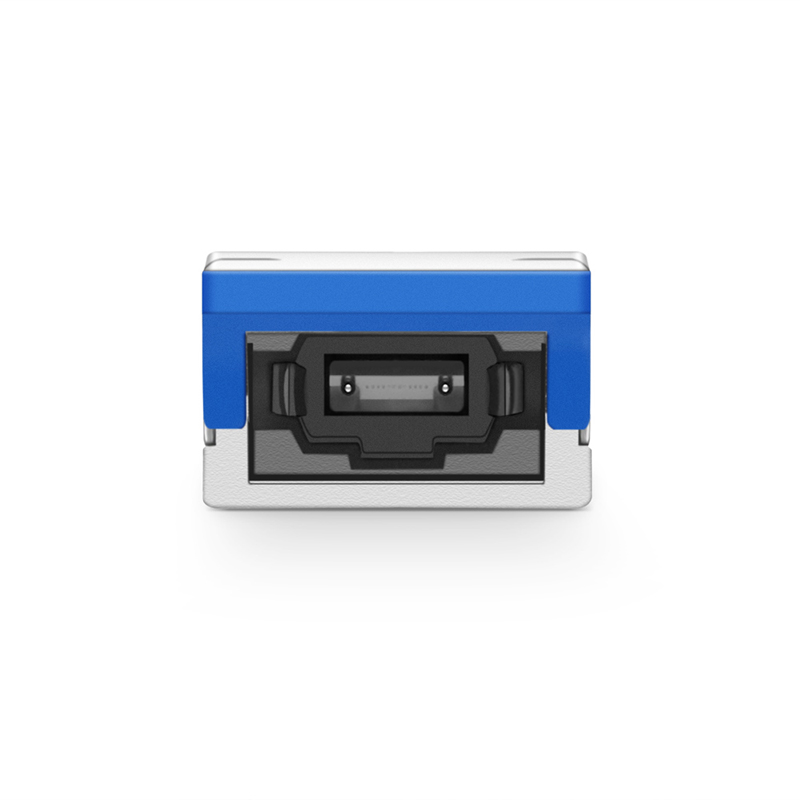

An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle.

QSFP+ PSM IR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.





Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) QFP-SM31FG-02DC
Transceiver Type IR4  Reach 2km
Wavelength

1310nm PSM4

Form Type QSFP+
Speed Description 40Gb/s Media SMF
Connector MPO  Extinction Ratio >3.5 dBm
TX Power -5.5~2.3 dBm Receiver Sensitivity <-11.5 dBm
 Applications

Infiniband QDR and DDR Interconnects

40G Ethernet

Proprietary High Speed Interconnections

Data center

Environment

Operating:0 to 70°C

Storage: -40°C to 85°C





Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with rich  experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


 replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOPSFP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOPSFP repair centre.

Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.



  • Request a Repair

When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.



  • Free maintenance items

Guarantee repairing in two years:1. Not man made damage;  2. Product quality issues caused by design defects or material problems



  • The following conditions will not be repaired

• Maintenance center judge as non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related devices, etc.

FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net Weight
0.046kg Gross Weight (with package) 0.32kg






Package of 1~20 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 21~80 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 81~160 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;



  2. If you need to specify a logistics company, please contact  customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of  services from the core system design to the compatibility design of SFP transceivers and  the completion of the final product,  we  can definitely satisfy our customers' needs through providing  customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solution, and also provide you with a complete network  solution, related products and technical support.









40G QSFP+ PSM4 2KM~10km Transceivers

QFP-SM31FG-02DC 40G  QSFP+ Transceiver SMF 1310nm PSM4 2km MPO DOM 0-70℃
QFP-SM31FG-10DC 40G  QSFP+ Transceiver SMF 1310nm PSM4 10km MPO DOM 0-70℃
