SKU: QFP-AC12DG-xxMC-FSZ
Product Highlights
Hot-pluggable QSFP- DD/QSFP28 form factor
8 channels full-duplex transceiver module
Supports data rate up to 26Gbps per channel
8 channels 850nm VCSEL array and PIN photo-detector array
Internal CDR circuits within receiver and transmitter data paths
Supports CDR bypass via I2C controlled
Low power consumption: 200GBASE-SR8 QSFP DD＜4W and 100GBASE-SR4 QSFP28＜2.5W
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Single MTP/MPO receptacle
Built-in digital diagnostic monitoring functionality
I2C management interface，Single 3.3V power supply
RoHS 2.0 compliant (lead free)，Commercial case temperature of 0 to 70°C

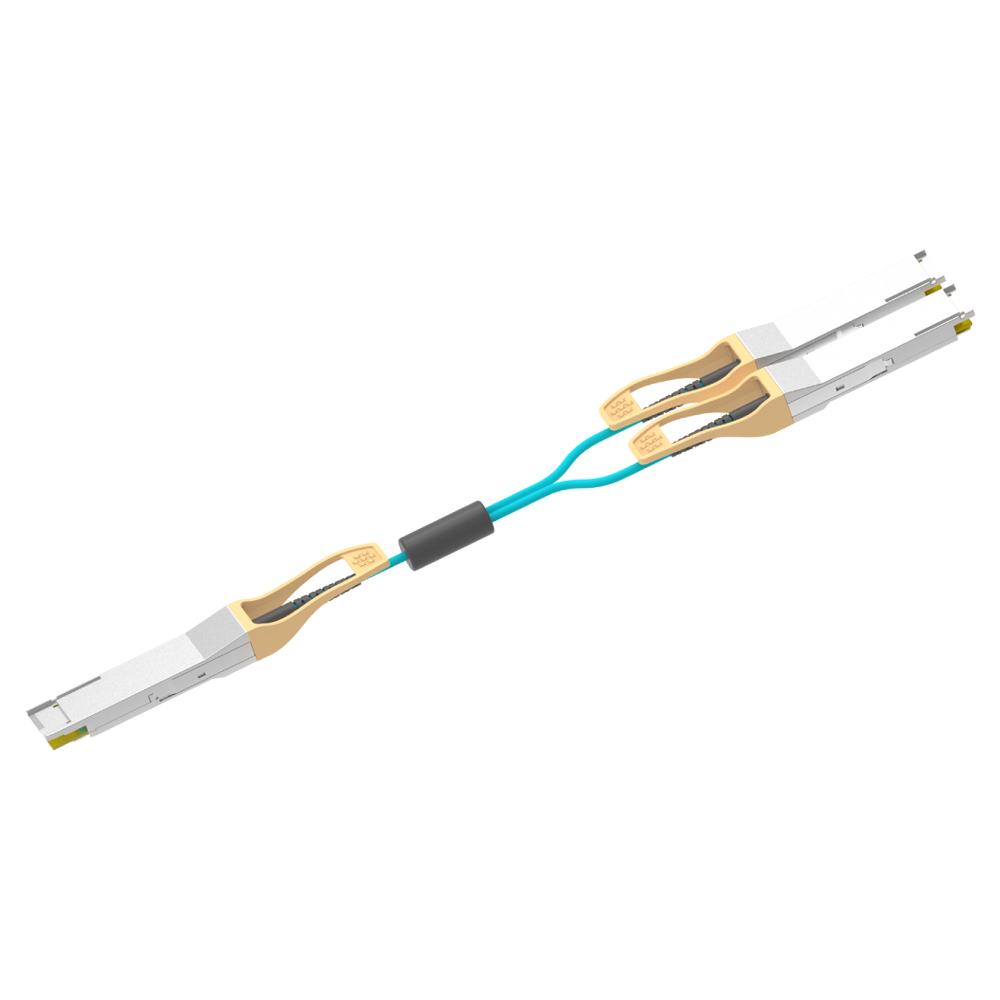

FIBERTOP 200G QSFP-DD to 2x100G QSFP28 1M(3ft) Berakout Active Optical Cable
FIBERTOP 200G QSFP-DD To 2x100G QSFP28 breakout Active Optical Cable (QFP-AC12DG-xxMC ) is designed for short-range multi-lane data communication and interconnect applications.
It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.
These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector.
The optical interface uses a 24 fiber MTP (MPO) connector.
This module incorporates FIBERTOP Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-AC12DG-xxMC | ||
| Cable Length | 1m | Optical Components | VCSEL+PIN | ||
| Wavelength |
850nm |
Form Type | QSFPDD/QSFP28 | ||
| Speed Description | 200Gb/s | Fiber Type | MMF | ||
| Power Consumption | 200GBASE-SR8 QSFP DD＜4W and | 100GBASE-SR4 QSFP28＜2.5W | Power |
-8.4~2.4dBm
|
|
| Applications |
IEEE 802.3cd 200GBASE SR8 IEEE 802.3bm 100GBASE SR4 |
Environment |
Operating:0 to70C Storage: -40°C to 85°C |
Quality Certification
