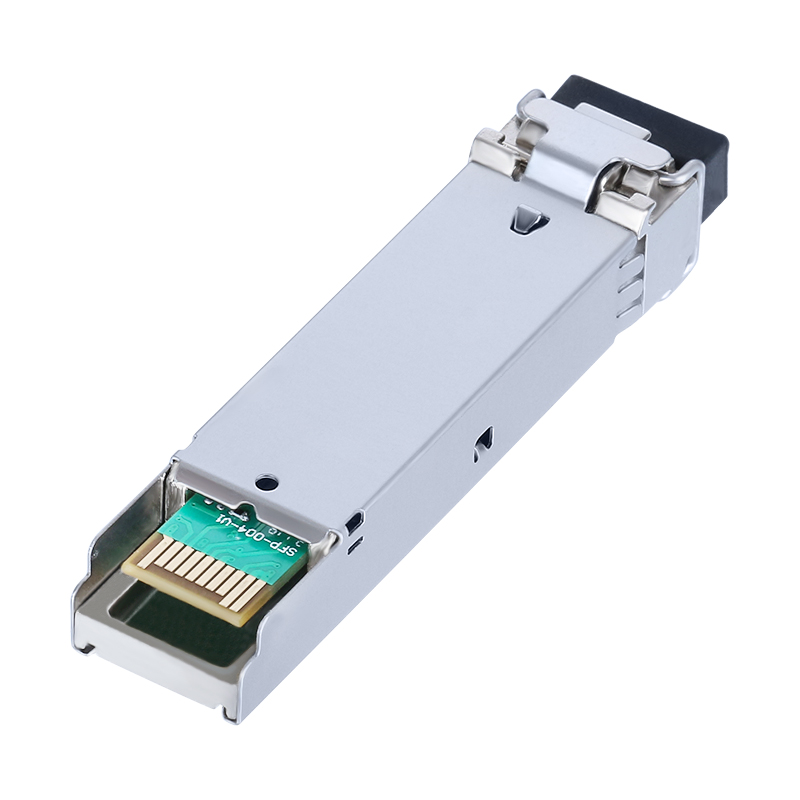

SFP-ZR+ 155Mbps SFP 120km BIDI TX1550nm/RX1490nm Transceiver
SFP-BL5403-A2DX
SFP-ZR+ 155Mbps SFP 120km BIDI TX1550nm/RX1490nm Transceiver

SFP-ZR+ 155Mbps SFP 120km BIDI TX1550nm/RX1490nm Transceiver



SKU: SFP-BL5403-A2DX



Product Highlights



Supports up to 155Mbps bit rates



Hot-pluggable SFP footprint



1550nm DFB laser and PIN photo detector, Up to 120km for SMF transmission



Compliant with SFP MSA and SFF-8472 with single LC receptacle



Compatible with RoHS



Single +3.3V power supply



Real Time Digital Diagnostic Monitoring







New Products



FIBERTOP  155Mbps SFP Transceiver Single Mode 1550nm TX / 1490nm RX 120km



The 155Mbps SFP 120km BIDI  transceivers are high performance, cost effective modules supporting data rate of 125Mbps/155Mbps and 120km transmission distance with SMF.

 The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

 The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.





Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) SFP-BL5403-A2DX
Transceiver Type BIDI Reach8 120km
Wavelength 1550nm Tx/1490nm Rx Form Type SFP
Speed Description 155M Media SMF
Connector Simplex  LC  Extinction Ratio >9.0 dBm
Average Output Power 0~5 dBm Receiver Sensitivity <-32 dBm
 Applications

155Mbps Optical systems

Fast Ethernet

SONET OC-3 LR-2 / SDH STM L-1.2

Other Optical links

Environment

Operating:0 to 70°C

Storage: -40°C to 85°C
