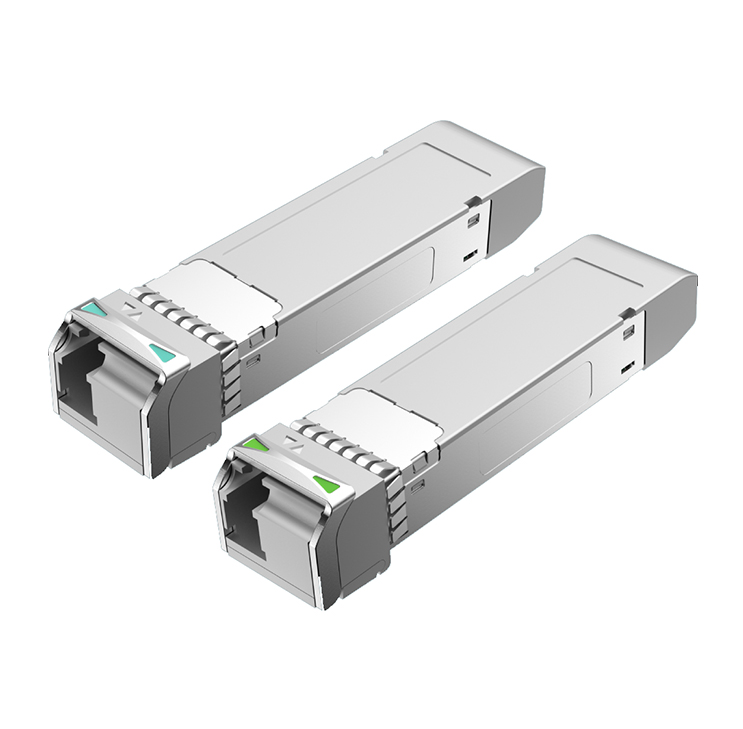

FIBERTOP 12Gbps BIDI Video SFP transceiver SMF 1270NM/1330NM 20km Single LC DOM Transmitter & Receiver for SD/HD/3G/6G/12G-SDI
FIBERTOP 12Gbps BIDI Video SFP transceiver SMF 1270NM/1330NM 20km Single LC DOM Transmitter & Receiver  for SD/HD/3G/6G/12G-SDI
FIBERTOP 12Gbps BIDI Video SFP transceiver SMF 1270NM/1330NM 20km Single LC DOM Transmitter & Receiver  for SD/HD/3G/6G/12G-SDI

FIBERTOP 12Gbps BIDI Video SFP transceiver SMF 1270NM/1330NM 20km Single LC DOM Transmitter & Receiver for SD/HD/3G/6G/12G-SDI



SKU: SVP-VLXXT2-20DC-FSZ



Product Highlights



SD/HD/3G/6G/12G-SDI SFP Transceiver



ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible



Metal enclosure for Lower EMI



A:1270nm DFB Laser transmitter,1330nm receiver



B:1330nm DFB Laser transmitter,1270nm receiver



Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI



Compliant with SFP MSA



Simplex LC connector



The module's receiver contains reclocker



ROHS compliant(lead free)



single 3.3V power supply



Hot-pluggable SFP footprint



Operating case temperature range:0 to +70°C




New Products



FIBERTOP 12Gbps BIDI Video SFP transceiver SMF 1270NM/1330NM 20km Single LC DOM Transmitter & Receiver  for SD/HD/3G/6G/12G-SDI



Video transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps,compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST 259 (SD-SDI).

Video transceiver supports SDI pathological patterns signals

The transceiver includes threse sections: a DFB laser, a PIN photodiode integrated with a  trans-impedance preamplifier (TIA) , Reclocker ,and a MCU controller.

The transceiver is compliant with SFP Multi-Source Agreement (MSA) .





Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) SVP-BLxxT2-20DC
Form Factor Transmitter & Receiver Reach 20km
Wavelength 1270nm/1330nm Form Type SFP
Speed Description 12.0-Gigabit Media SMF
Connector Single LC  Extinction Ratio >3.5dB
TX Power -2.0~1.0dBm Receiver Sensitivity

12G <-11dBm

 Applications

ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 Electrical-to-Optical Interfaces

 UHDTV/HDTV/SDTV Service Interfaces

Environment

Operating:0 to70C

Storage: -40°C to 85°C





Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with rich  experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


 replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOPSFP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOPSFP repair centre.

Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.



  • Request a Repair

When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.



  • Free maintenance items

Guarantee repairing in two years:1. Not man made damage;  2. Product quality issues caused by design defects or material problems



  • The following conditions will not be repaired

• Maintenance center judge as non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related devices, etc.

FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net Weight
0.02kg Gross Weight (with package) 0.32kg





 Packing

Package of 1~50 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 51~200 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 201~400 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;



  2. If you need to specify a logistics company, please contact  customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of  services from the core system design to the compatibility design of SFP transceivers and  the completion of the final product,  we  can definitely satisfy our customers' needs through providing  customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solution, and also provide you with a complete network  solution, related products and technical support.









12G Video SFP  SDI Transceivers

SVP-BL23T2-20DC 12Gbps Video SFP SMF TX1270NM/RX1330NM 20km Single  LC DOM Transmitter & Receiver for SD/HD/3G/6G/12G-SDI
SVP-BL32T2-20DC 12Gbps Video SFP SMF TX1330NM/RX1270NM 20km Single  LC DOM Transmitter & Receiver for SD/HD/3G/6G/12G-SDI
