SKU: XPK-SM55TG-80DC
Product Highlights
XENPAK MSA Compliant
70-PIN connector
SC duplex receptacle package
XAUI 4x3.125Gb/s and TX/RX 10Gb/s data rate
Cooled EA-DFB/APD
Power supply: +5.0 V, +3.3 V, APS:+1.2 V
Power Dissipation 4W Maximum
Management and control with MDIO 2-wire bus
XAUI electrical interface 4 x 3.125 Gb/s Ethernet

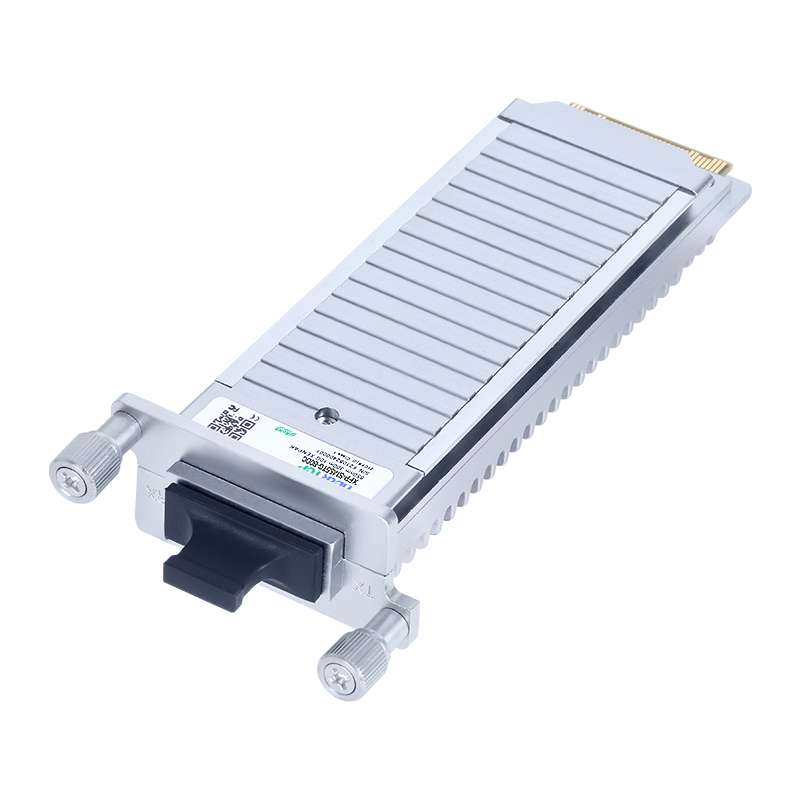

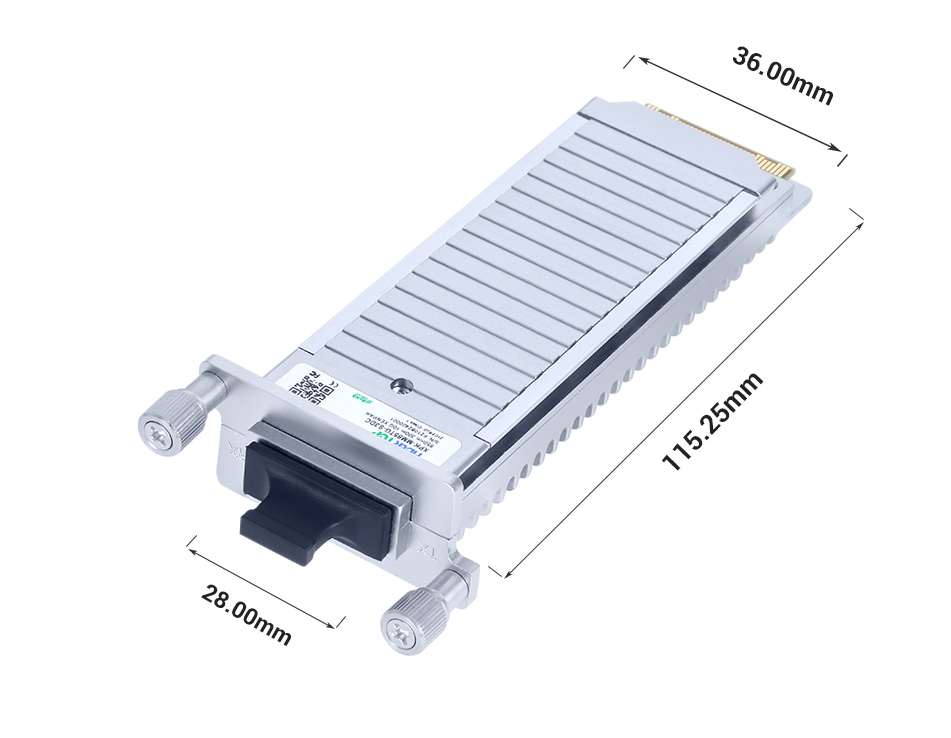

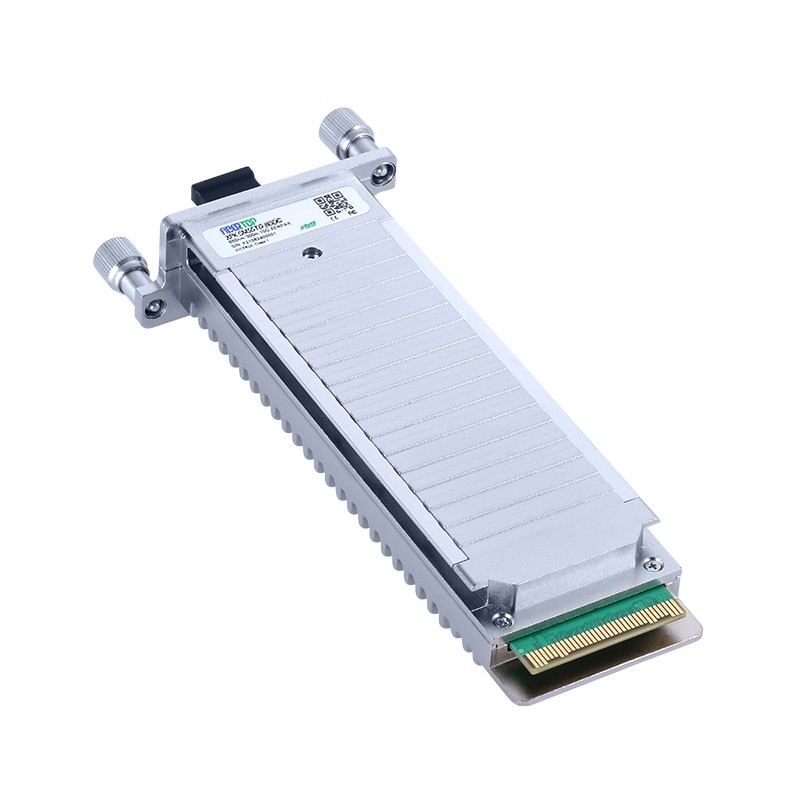

FIBERTOP 10G ZR XENPAK Transceiver SMF 1550nm 80km SC DOM
The 10GBASE-ZR XENPAK Module is a highly integrated Serial optical transponder module for high-speed, 10Gbit/s data transmission applications.
4×3.125Gbps Ethernet Signal Input by XAUI Interface.
An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer).
Designing for 10GBASE-ZR Transmission with an uncooled directly modulated 1550nm Cooled EA-DFB Laser.
The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems.
A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | XPK-SM55TG-80DC |
| Transceiver Type | ZR | Reach | 80km |
| Wavelength | 1550nm | Form Type | XENPAK |
| Speed Description | 10-Gigabit | Media | SMF |
| Connector | SC | Extinction Ratio | >7 dBm |
| TX Power | 0~4 dBm | Receiver Sensitivity | <-24 dBm |
| Applications |
10GE Ethernet switches and routers 10GE Core-routers 10GE Storage Other 10Gbps Ethernet Transmission System |
Environment |
Operating:0 to 70°C Storage: -40°C to 85°C |
Quality Certification
FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:
|
Return within 30 days |
replacement up to 1 year |
Up to 5 years warranty |
Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.
Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.
When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.
Guarantee repairing in two years:1. Not man made damage; 2. Product quality issues caused by design defects or material problems
• Maintenance center judge as non FIBERTOP products;
• The appearance of man-made damage;
• End face damage caused by use;
• Inapplicable items listed in the warranty statement.
• FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;
• The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;
• The warranty also does not apply to second-hand or unauthorized resale of products;
• The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.
• The warranty does not cover problems caused by third-party software or connected related devices, etc.
| FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services. |
 |
|||||||
| Net Weight |
0.21kg | Gross Weight (with package） | 0.32kg |
||||
 |
| Package of 1~2 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 3~8 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 9~16 pieces or more |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 |
DELIVERY METHOD
FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.
| Receiving Region | Logistics Type | Timeliness |
| Hong Kong, Macao and Taiwan |  |
 |
 |
SF 1~2 days |
| FedEx IP 1~3 days | ||||
| FedEx IE 4~6 days | ||||
| DHL 2~5 days | ||||
| Overseas Regions |  |
 |
 |
UPS 1~3 days |
| FedEx 1~3 days | ||||
| DHL 2~5 days |
Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;
2. If you need to specify a logistics company, please contact customer service staff or your sales representative.
|
FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the compatibility design of SFP transceivers and the completion of the final product, we can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time. |
Product customization
|
Label |
Colour |
Model |
Length |
Function |
Scheme Customization
|
Business
|
Rate
|
Distance
|
 |
FIBERTOP focuses on customer-oriented solutions and provides technical support.
We can optimize the design based on your original solution, and also provide you with a complete network solution, related products and technical support. |
| XPK-MM85TG-S3DC | 10G SR XENPAK Transceiver MMF 850nm 300m SC DOM 0-70° |
| XPK-MM31TG-S2DC | 10G XENPAK Transceiver MMF 1310nm 220m SC DOM 0-70° |
| XPK-SM31TG-10DC | 10G LR XENPAK Transceiver SMF 1310nm 10km SC DOM 0-70° |
| XPK-SM31TG-40DC | 10G XENPAK Transceiver SMF 1310nm 40km SC DOM 0-70° |
| XPK-SM55TG-40DC | 10G ER XENPAK Transceiver SMF 1550nm 40km SC DOM 0-70° |
| XPK-SM55TG-80DC | 10G ZR XENPAK Transceiver SMF 1550nm 80km SC DOM 0-70° |
SKU: X2-MM85TG-S3DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps Transmission Distance up to 300m (MMF) Vertical Cavity Surface Emitting Laser at 850nm SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface
SKU: X2-MM31TG-S2DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps Transmission Distance up to 220m(MMF) SC Receptacle 1310nm DFB Laser, SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface Diagnostic Optics Monitoring
SKU: X2-SM31TG-10DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps Transmission Distance up to 10Km(SMF) SC Receptacle 1310nm DFB Laser SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface
SKU: X2-SM31TG-40DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps Transmission Distance up to 40Km(SMF) SC Receptacle 1310nm DFB Laser SC Duplex Optical Connector Compatible with RoHS Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface Power Supply : +3.3V, APS(+1.2V)
SKU: X2-SM55TG-40DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbps Transmission Distance up to 40Km(SMF) SC Receptacle 1550nm Cooled EA-DFB Laser SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface
SKU: X2-SM55TG-80DC Product Highlights Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-ZR at 10.3125Gbps Transmission Distance up to 80Km(SMF) SC Receptacle 1550nm Cooled EA-DFB Laser SC Duplex Optical Connector Compatible with RoHS Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface Power Supply : +5V, +3.3V, APS(+1.2V)
SKU: XPK-MM85TG-S3DC Product Highlights Compatible with XENPAK MSA Rev.3.0 Support of IEEE802.3ae up to 300m (OM3 MMF) Vertical Cavity Surface Emitting Laser at 850nm (VCSEL) Power Consumption 1.8W (typ.) , Adaptable Power Supply (APS:+1.2V) Hot pluggable 70-pin connector with XAUI electrical interface Management and control via MDIO 2-wire interface Compatible with RoHS
SKU: XPK-MM31TG-S2DC Product Highlights Compatible with XENPAK MSA Rev.3.0 Support of IEEE802.3ae 10GBASE-LRM Transmission Distance up to 220m(MMF) Uncooled directly modulated 1310nm DFB Laser Adaptable Power Supply (APS:+1.2V) SC duplex Optical connector Hot pluggable 70-pin connector with XAUI electrical interface
SKU: XPK-SM31TG-10DC Product Highlights Compatible with XENPAK MSA Rev.3.0 Support of IEEE802.3ae 10GBASE-LR Transmission Distance up to 10km(SMF) Uncooled directly modulated 1310nm DFB Laser Adaptable Power Supply (APS:+1.2V) SC duplex Optical connector Hot pluggable 70-pin connector with XAUI electrical interface
SKU: XPK-SM31TG-40DC Product Highlights Compatible with XENPAK MSA Rev.3.0,Compatible with RoHS Support of IEEE802.3ae 10GBASE-LR Transmission Distance up to 40km(SMF) Uncooled directly modulated 1310nm DFB Laser Temperature Range 0 to 70°C Adaptable Power Supply (APS:+1.2V) SC duplex Optical connector Hot pluggable 70-pin connector with XAUI electrical interface Management and control via MDIO 2-wire interface
SKU: XPK-SM55TG-40DC Product Highlights Compatible with XENPAK MSA Rev.3.0 Support of IEEE802.3ae 10GBASE-ER Transmission Distance up to 40km(SMF) Uncooled directly modulated 1550nm Cooled EA-DFB Laser Temperature Range 0 to 70°C Adaptable Power Supply (APS:+1.2V) SC duplex Optical connector
SKU: XPK-SM55TG-80DC Product Highlights XENPAK MSA Compliant 70-PIN connector SC duplex receptacle package XAUI 4x3.125Gb/s and TX/RX 10Gb/s data rate Cooled EA-DFB/APD Power supply: +5.0 V, +3.3 V, APS:+1.2 V Power Dissipation 4W Maximum Management and control with MDIO 2-wire bus XAUI electrical interface 4 x 3.125 Gb/s Ethernet
