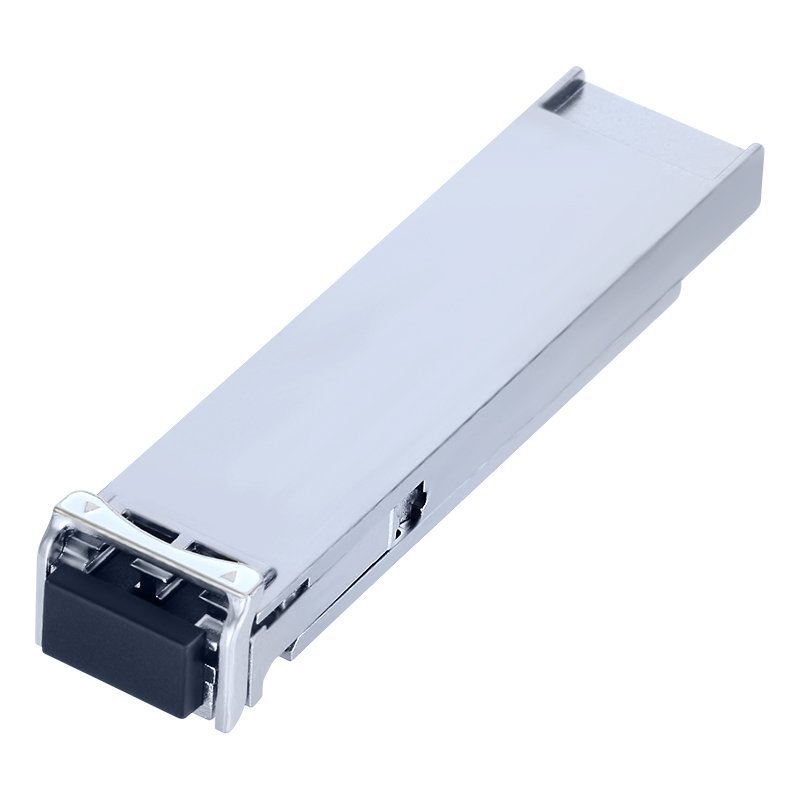

10GBASE-ZR XFP 10G CWDM 80km 1470~1610nm Transceiver Module
XFP-CW47TG-80DC
10GBASE-ZR 10G XFP CWDM Transceiver Module
10G-XFP-CWDM-ZR 80km

10GBASE-ZR XFP 10G CWDM 80km 1470~1610nm Transceiver Module



SKU: XFP-CW47TG-80DC



Product Highlights



Supports 9.953Gb/s to 11.1Gb/s bit rates



Hot-pluggable XFP footprint, Built-in digital diagnos



Maximum link length of 80km with SMF



CWDM Cooled EML laser and APD photodiode



XFP MSA package with duplex LC connector



Compatible with RoHS



Single +3.3V power supply




New Products



FIBERTOP 10G XFP CWDM Transceiver SMF 1470nm~1610nm 80km LC DOM



The 10GBASE-ZR XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 80km on SMF.

The transceiver module comprises a transmitter with 1470~1610nm CWDM Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.



Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) XFP-CW47TG-80DC
Transceiver Type CWDM Reach 80km
Wavelength 1470nm Form Type XFP
Speed Description 10-Gigabit Media SMF
Connector LC  Extinction Ratio >8.2 dBm
TX Power 0~+4 dBm Receiver Sensitivity <-23 dBm
 Applications

10G CWDM Networks

SONET OC-192&SDH STM-64 at 9.953Gbps

10G Ethernet Applications

10G Fiber Channel Applications

10GE over G.709 at 11.09Gbps

OC192 over FEC at 10.709Gbps

Other optical links, up to 11.1Gbps

Environment

Operating:0 to 70℃





Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with rich  experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


 replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.



  • Request a Repair

When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.



  • Free maintenance items

Guarantee repairing in two years:1. Not man made damage;  2. Product quality issues caused by design defects or material problems



  • The following conditions will not be repaired

• Maintenance center judge as non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related devices, etc.

FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net Weight
0.034kg Gross Weight (with package) 0.32kg





 Packing

Package of 1~25 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 26~100 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 101~200 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;



  2. If you need to specify a logistics company, please contact  customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of  services from the core system design to the compatibility design of SFP transceivers and  the completion of the final product,  we  can definitely satisfy our customers' needs through providing  customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solution, and also provide you with a complete network  solution, related products and technical support.

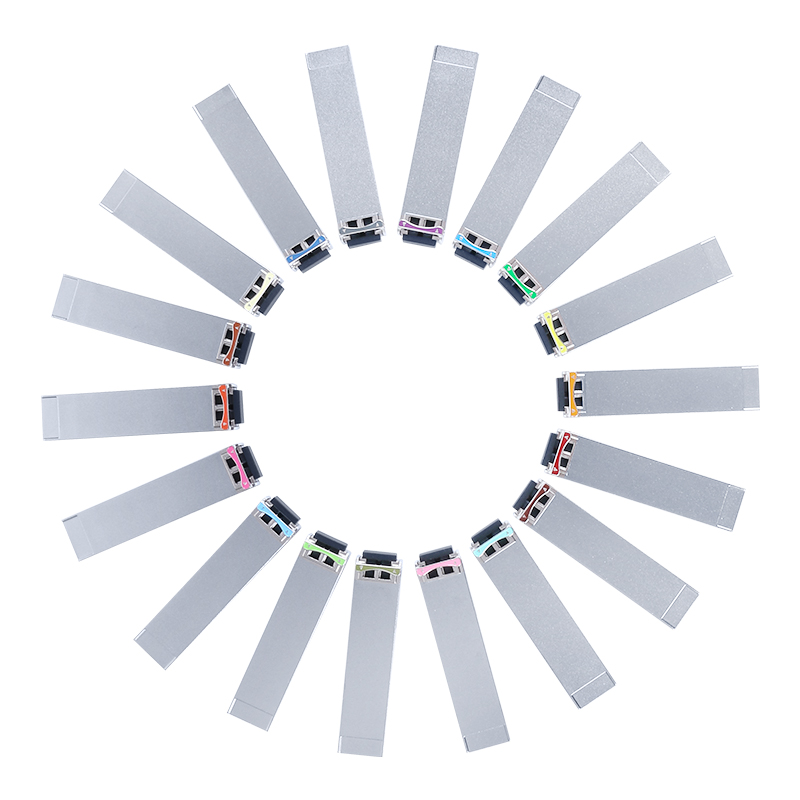

10G XFP CWDM 1470~1610NM 4km~80km Transceivers

XFP-CWxxTG-40Dx 10G XFP CWDM Transceiver SMF 1470~1610nm  40km LC DOM 0-70℃
XFP-CWxxTG-80Dx 10G XFP CWDM Transceiver SMF 1470~1610nm  80km LC DOM 0-70℃
