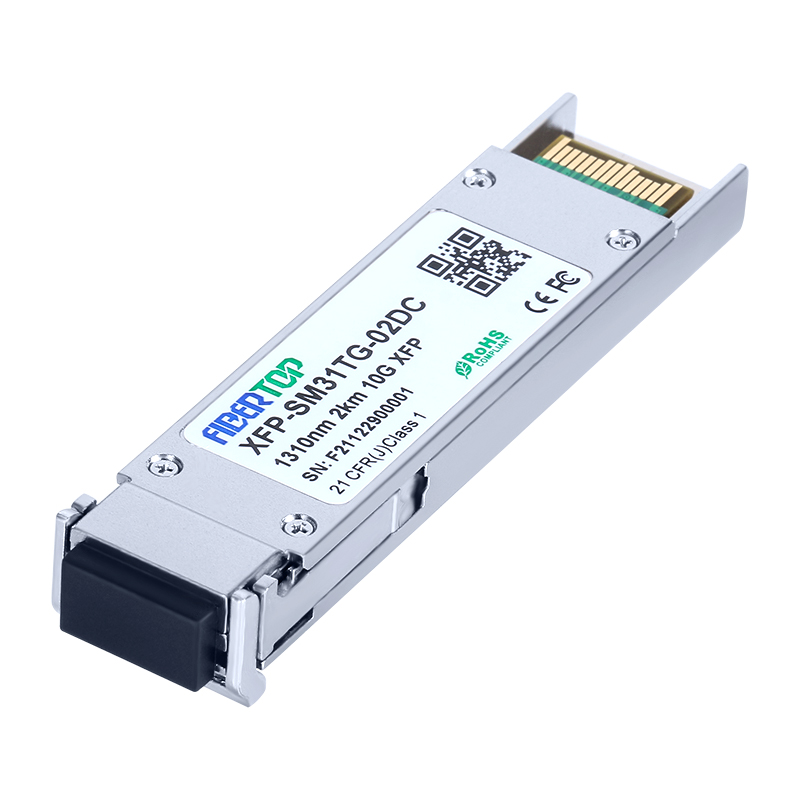

SKU: OC192-XFP-SR1-FSZ
Product Highlights
Supports 9.953Gb/s to 11.1Gb/s bit rates
Hot-pluggable XFP footprint, Built-in digital diagnos
Maximum link length of 2km with SMF
1310nm FP laser and PIN photodiode
XFP MSA package with duplex LC connector
Compatible with RoHS
Single +3.3V power supply
Power dissipation <1.5W
No reference clock required
The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA),
supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 2km on SMF.
The transceiver module comprises a transmitter with 1310nm FP laser and a receiver with a PIN photodiode.
Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
| Compatible OEM | Brocade® | Compatible With OEM Part Number(s) | OC192-XFP-SR1 |
| Transceiver Type | LR2km | Reach | 2km |
| Wavelength |
1310nm |
Form Type | XFP |
| Speed Description | 10Gb/s | Media | SMF |
| Connector | LC | Extinction Ratio | >3.5dB |
| TX Power | -6.5~0.5 dBm | Receiver Sensitivity | <-14.5 dbm |
| Applications |
SONET OC-192&SDH STM-64 at 9.953Gbps 10GBASE-LR/LW 10G Ethernet 1200-SM-LL-L 10G Fibre Channel 10GE over G.709 at 11.09Gbps OC192 over FEC at 10.709Gbps Other optical links, up to 11.1Gbps Fiber Channel
|
Environment |
Operating:0 to70C Storage: -40°C to 85°C |
Compatibility |
|
|||||||||
Quality Certification
FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:
|
Return within 30 days |
replacement up to 1 year |
Up to 5 years warranty |
Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOPSFP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOPSFP repair centre.
Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.
When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.
Guarantee repairing in two years:1. Not man made damage; 2. Product quality issues caused by design defects or material problems
• Maintenance center judge as non FIBERTOP products;
• The appearance of man-made damage;
• End face damage caused by use;
• Inapplicable items listed in the warranty statement.
• FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;
• The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;
• The warranty also does not apply to second-hand or unauthorized resale of products;
• The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.
• The warranty does not cover problems caused by third-party software or connected related devices, etc.
| FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services. |
 |
|||||||
| Net Weight |
0.02kg | Gross Weight (with package） | 0.32kg |
||||
 |
| Package of 1~50 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 51~200 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 201~400 pieces or more |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 |
DELIVERY METHOD
FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.
| Receiving Region | Logistics Type | Timeliness |
| Hong Kong, Macao and Taiwan |  |
 |
 |
SF 1~2 days |
| FedEx IP 1~3 days | ||||
| FedEx IE 4~6 days | ||||
| DHL 2~5 days | ||||
| Overseas Regions |  |
 |
 |
UPS 1~3 days |
| FedEx 1~3 days | ||||
| DHL 2~5 days |
Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;
2. If you need to specify a logistics company, please contact customer service staff or your sales representative.
|
FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the compatibility design of SFP transceivers and the completion of the final product, we can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time. |
Product customization
|
Label |
Colour |
Model |
Length |
Function |
Scheme Customization
|
Business
|
Rate
|
Distance
|
 |
FIBERTOP focuses on customer-oriented solutions and provides technical support.
We can optimize the design based on your original solution, and also provide you with a complete network solution, related products and technical support. |
| 10G-XFP-SR | 10G SR XFP Transceiver MMF 850nm 300m LC DOM 0-70°C |
| OC192-XFP-SR1 | 10G XFP Transceiver SMF 1310nm 2km LC DOM 0-70°C |
| 10G-XFP-LR | 10G LR XFP Transceiver SMF 1310nm 10km LC DOM 0-70°C |
| OC192-XFP-IR2 | 10G ER XFP Transceiver SMF 1550nm 40km LC DOM 0-70°C |
| 10G-XFP-ZR | 10G ZR XFP Transceiver SMF 1550nm 80km LC DOM 0-70°C |
| 10G-XFP-ZR100 | 10G XFP Transceiver SMF 1550nm 100km LC DOM 0-70°C |
