40G to 4x 10G DAC

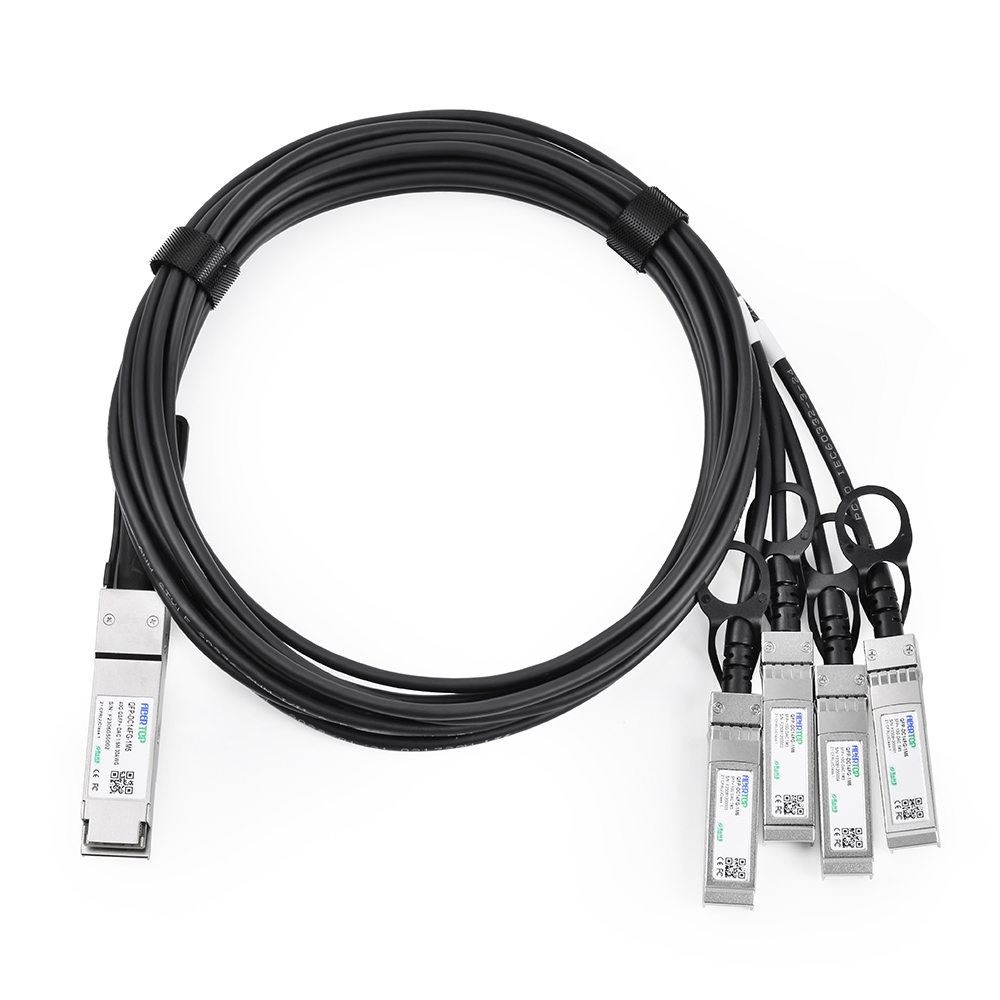

40G QSFP+ to 4xSFP+ Breakout Twinax Copper Passive 1m- 5m DAC Cable
40G QSFP+ to 4xSFP+ Breakout Twinax Copper Passive 1m- 5m DAC Cable

40G QSFP+ to 4xSFP+ Breakout Twinax Copper Passive 1m- 5m DAC Cable



SKU: QFP-DC14FG-1M5C



Product Highlights



Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)



Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant)



Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch



Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel



Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)



Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching



Bridge the gap between your 10G and 40G capable switches/host adapters


New Products

 40G QSFP+ to 4xSFP+ Breakout Twinax Copper Passive 1m- 5m DAC Cable



40G QSFP+ to 4x 10G SFP+ direct attach passive copper cable are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ and SFP+ equipment connections. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.



Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) QFP-DC14FG-1M5C
Connector Type QSFP+ to 4xSFP+ Length 1m
Minimum Bend Radius 21mm Wire AWG 30AWG
Max Data Rate 40G Multi Rate multi-rate
Spec. P/A Passive Spec. E/M EEPROM
Jacket Material OFNP Spec. Impedance 100 ohm
 Applications

Ethernet 10G, 40G

InfiniBand 4X SDR, DDR, QDR

Environment

Operating: 0 to70°C









Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality our products, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOPSFP' s survival and development.
  • Our R&D team are experts with rich experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.











FIBERTOP provide after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


Replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information (such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with →FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note:The warranty period of the repair or replacement product is based on the longer time,either the remaining warranty period of the original product or ninety days after repair.

  • Request a repair

When your FIBERTOP products need repairing(RMA-Return Material Authorization ) , please contact your sales consultant to provide timely service to you.



  • Free maintenance items

Guarantee repairing in two years : 1.Not man made damage; 2. Product quality issues caused by design defects or material problems.



  • The following conditions will not be repaired

• Maintenance center judge as a non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all the products are subject to strict quality control from raw materials procurement to production process. According to the problems raised by customers. if it is confirmed that the defective product are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free ;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification ;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products ; FIBERTOP is not obliged to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related equipment,etc.



FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net Weight
0.23kg Gross Weight (with package) 0.4kg





 Packing

Package of 1~20 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 21~80 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 81~160 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;



  2. If you need to specify a logistics company, please contact  customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the  compatibility design of SFP transceivers and the completion of the final product. We can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time.
