SKU: QFP-DW61HG-80DC
Product Highlights
Supports 100Gbps，Available in all C-Band Wavelengths
100GHz DWDM ITU Grid，100GHz DWDM ITU Grid
Power Dissipation < 5.5W
80km reach over SMF with EDFA&DCM (dispersion compensation modules)
QSFP28 MSA Compliant,SFF-8636 Rev 2.10a Compliant
4x25G Electrical Interface,LC Duplex Connector
I 2 C Interface with Integrated Digital Diagnostic Monitoring
Safety Certification: TUV/UL/FDA,RoHS Compliant
Commercial Case Temperature Range of 0°C to 70°C

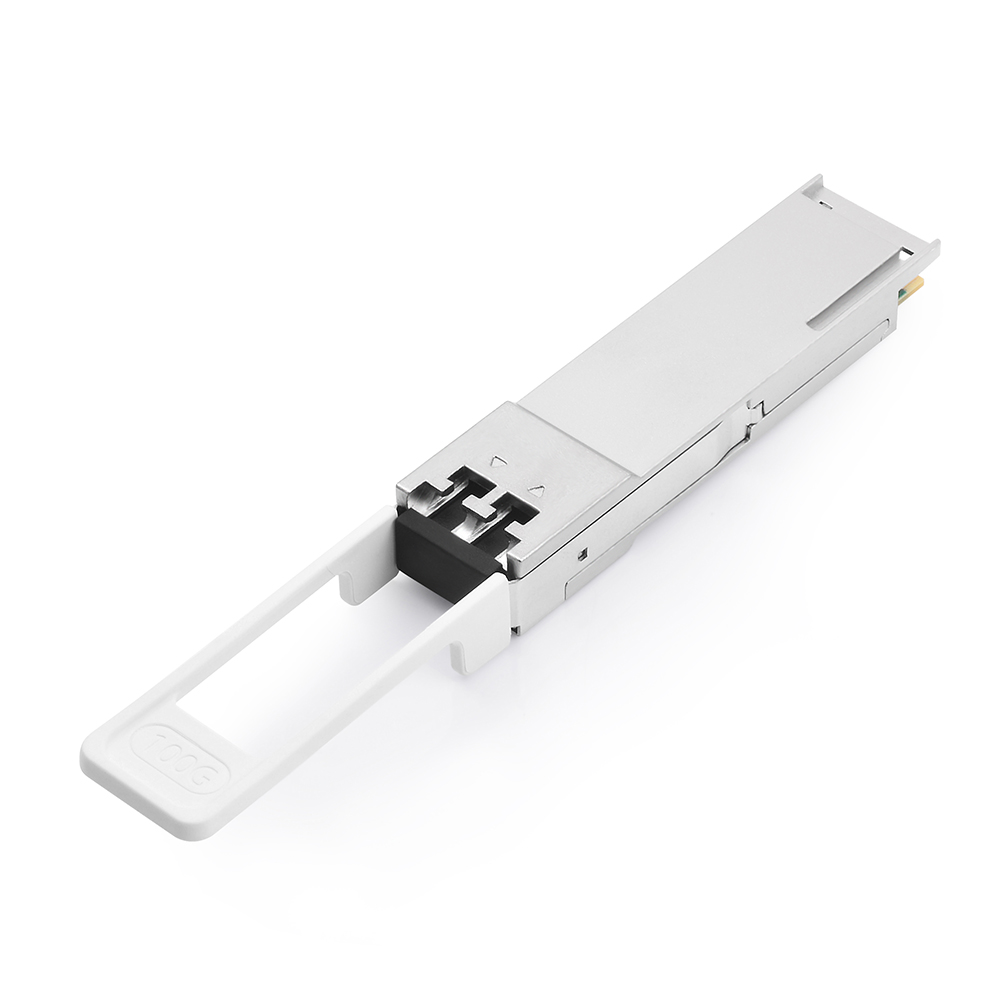

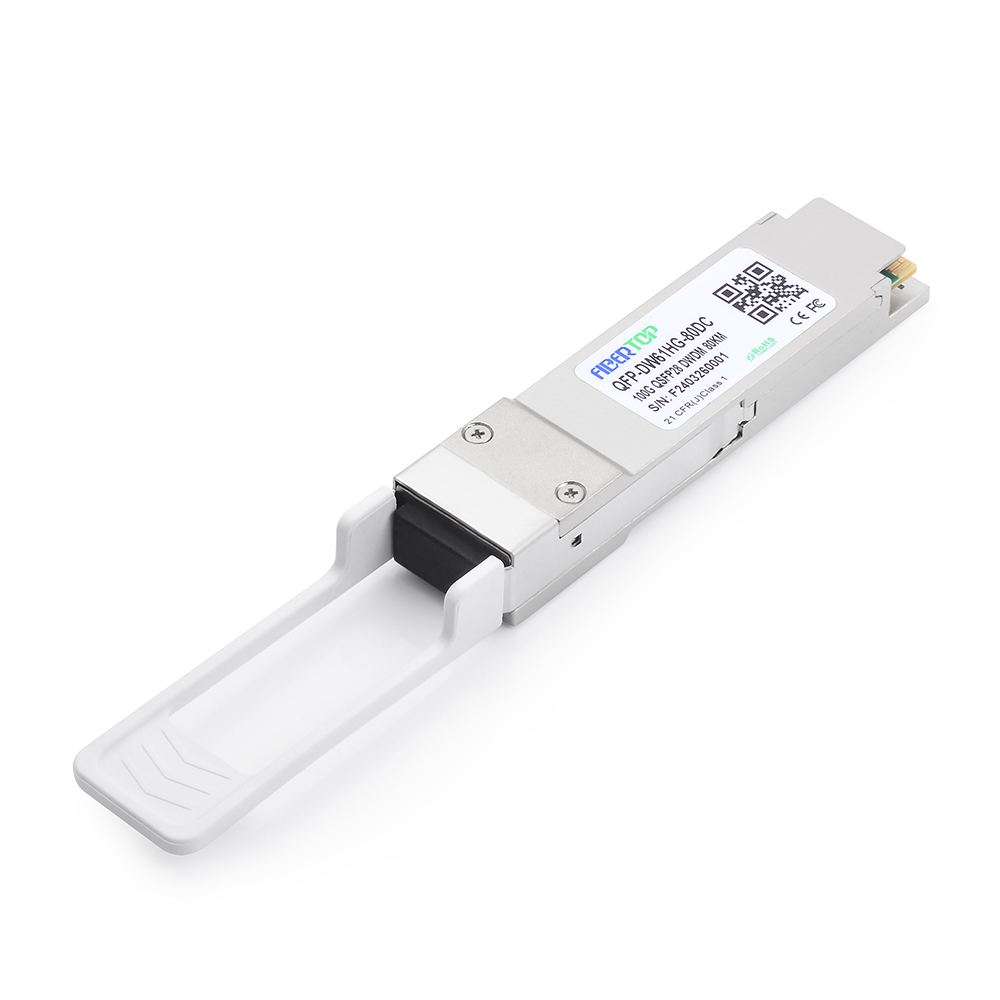

FIBERTOP 100G DWDM QSP28 Transceiver SMF CH15~CH61 80km LC DOM
The QFP-DWxxHG-80DC series single mode transceiver module is designed for use in duplex optical data communications.
This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T.
This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal
to 4 channels of 25Gbps (NRZ) electrical output data.
The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA.
It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-DWxxHG-80DC |
| Transceiver Type | DWDM | Reach | 80km |
| Wavelength |
CH15~ CH61 |
Form Type | QFP |
| Speed Description | 100Gb/s | Media | SMF |
| Connector | LC | Extinction Ratio | >3.5 dBm |
| TX Power | -7.0~4.0 dBm | Receiver Sensitivity | <-4.5 dBm |
| Applications |
100G Amplified DWDM Networks Data Center Interconnects Other optical links, up to 11.1Gbps |
Environment |
Operating:0 to70C Storage: -40°C to 85°C |
Quality Certification
